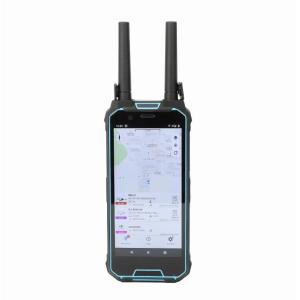

H2L Handheld UAV Detection And Positioning Equipment

The product is mainly composed of main machine, detection antenna, Type-C interface charger and protective case, as shown in the following table:

Table 1 List of product hardware composition

3. Product Function

1) Uav positioning^[1]: The single machine can locate the position of the UAV, which can be presented in the form of "UAV icon" in the electronic map interface.

2) UAV Pilots positioning ^[2]: The single machine can locate the position of the remote control (Pilot), which can be presented in the way of "remote control icon" in the electronic map interface.

3) Detection and identification^[3]: With spectrum detection function, the recognizable models can include DJI, Dow Tong and other common models, as well as self-made crossing machine, WiFi machine and other models.

4) FPV detection: it can detect and identify the self-made crossing machine, and analyze the first perspective flight picture in real time.

5) Flying hand position navigation^[4]: The system can plan the search route of the drone operator, and provide the function of "one-click position navigation".

6) Unique identity^[5]: DJI series (OcuSync) UAV, RID protocol UAV, WIFI UAV unique serial number (SN).

7) Trajectory tracking^[6]: Multiple flight tracks of drones can be displayed in the electronic map interface.

8) Multidimensional information monitoring^[7]: The current UAV model, location information (longitude and latitude), speed, altitude, and pilot position (longitude and latitude) can be displayed in real time in the detection list bar.

9) Black and white list^[8]: The whitelist can be set up, and the system detects the drone in the whitelist.

10) RID monitor^[9]: With RID remote recognition function, support for a variety of standard protocols.

11) Intrusion alarm: When the drone invasion is detected, the equipment will conduct sound, vibration and other ways to alarm.

12) Track playback: support historical track playback function to assist security personnel to analyze historical UAV flight data.

13) Detection record: The detection record list can be reserved for the historical detection record, including multidimensional information such as UAV serial number, model and frequency.

14) Visual data analysis: Support UAV detection and flight data statistical analysis, which can be displayed through a graphical interface.

15) Networking intercom: The device can be connected to the wireless network and support the real-time intercom function between the devices.(Optional function)

Note: In [1] - [8], The positioning UAV is the OcuSync transmission model of DJI series.

[9] GB 42590-2023,ASTM F3411 Remote ID,ASD-STAN prEN 4709-002

4. Product Characteristics

1) Passive detection: no electromagnetic environmental pollution, environmental friendly, high concealment.

2) Large screen touch interaction: using a 6-inch large screen touch design, easy to operate, convenient and fast.

3) Mobile portability: the device weighs only 650g and can be easily carried by hand, Ready-to-use.

4) Standard charging interface: Type-c standard charging interface, which can be charged by external power supply adapter or mobile power supply.

5. Product index parameters

5.1 Performance indicators

Table 2 Product Performance indicators

5.2 Mechanical parameters

Table 3. Mechanical parameters

5.3 Electrical characteristics

Table 4. Electrical characteristics

5.4 Environmental Adaptability

Table 5: Environmental Adaptability

5.5 Touch screen parameters

Table 6 Touch screen parameters

5.6 System storage

Table 7. System storage parameters

5.7 Operating environment

Table 8. System operation parameters
